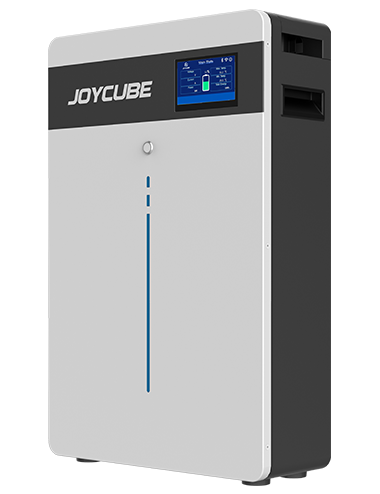

| Model | RE-L-10-X01 |
| Battery Chemistry | Lithium Iron Phosphate(LiFePO4) |
| Nominal Voltage(V) | 51.2 |
| Battery Capacity(Ah) | 200 |
| Nominal Energy(kWh) | 10.24 |
| Usable Energy(kWh) | 9.72 |
| Operating Voltage Range(V) | 44.8-58.4 |
| Recommended Charge/Discharge Current(A) | 100 |
| Max Charge/Discharge Current(Continuous, A) | 200 |
| Dimension(W*D*H,mm) | 439*225*610 |
| Weight(Kg) | 90 |
| Expansion | Up to 8units in parallel |
| Communication | CAN/RS485 |
| Operating Temperature | Charging: 0℃ — +55℃ / Discharging:-20℃ — +55℃ |
| Storage Temperature | -20℃ — +35℃ |
| Humidity | 5%-95% |
| Altitude (m) | <2000 |
| Design Life | 10+Years |
| Cycle Life | 6000cycles,@0.5C@25℃@80%DOD |
| Certifications | IEC62619/CE/UN38.3 |
