| Application | Golf Carts |
| Model | EZY-51200 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10.24 kWh |
| Dimensions(L*W*H) | 727 × 394 × 263 mm(Battery housing) 685 × 350 × 263 mm(External dimension) |
| Weight | Appr. 98Kg |
| Terminal Type | M8 |
| IP Rating | IP66 |
| Operating Voltage Range | 40~58.4V |
| Recommend Charge current (A) | 100A |
| Maximum Charge current (A) | 200A |
| Continuous discharge current (A) | 200A |
| Maximum discharge current (A,60s) | 400A |
| Peak discharge current (A,30s) | 600A |
| Peak discharge current (A,10s) | 660A |
| Cycle life | ＞4000cycles |
| Charging Temperature Range | 32°F ~ 131°F (0°C ~ 55°C) |
| Charging Temperature Range | -4°F to 131°F (-20°C ~55°C) -Heating version |
| Disharging Temperature Range | -4°F ~ 140°F (-20°C ~ 60°C) |
| Recommended Temperature Range | 59°F ~ 95°F (15°C ~ 35°C) |
| Communication | CAN 2.0 |
| Safety | Built-in BMS,Explosion Relief Valve |
| Optional features | Bluetooth APP,Heating Device |
| Certification | UN38.3 |
| Application | Golf Carts |
| Model | EZY-51150 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 154Ah |
| Nominal Energy | 7.88 kWh |
| Dimensions(L*W*H) | 509 × 335 × 261 mm(Battery housing) 551 × 379 × 261 mm(External dimension) |
| Weight | Appr. 60Kg |
| Terminal Type | M8 |
| IP Rating | IP66 |
| Operating Voltage Range | 40~58.4V |
| Recommend Charge current (A) | 75A |
| Maximum Charge current (A) | 154A |
| Continuous discharge current (A) | 154A |
| Maximum discharge current (A,60s) | 308A |
| Peak discharge current (A,30s) | 500A |
| Peak discharge current (A,10s) | 600A |
| Cycle life | ＞4000cycles |
| Charging Temperature Range | 32°F ~ 131°F (0°C ~ 55°C) |
| Charging Temperature Range | -4°F to 131°F (-20°C ~55°C) -Heating version |
| Disharging Temperature Range | -4°F ~ 140°F (-20°C ~ 60°C) |
| Recommended Temperature Range | 59°F ~ 95°F (15°C ~ 35°C) |
| Communication | CAN 2.0 |
| Safety | Built-in BMS,Explosion Relief Valve |
| Optional features | Bluetooth APP,Heating Device |
| Certification | UN38.3 |
| Application | Golf Carts |
| Model | EZY-51100 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12 kWh |
| Dimensions(L*W*H) | 460 × 283 × 260 mm(Battery housing) 502 × 329 × 260 mm(External dimension) |
| Weight | Appr. 53Kg |
| Terminal Type | M8 |
| IP Rating | IP66 |
| Operating Voltage Range | 40~58.4V |
| Recommend Charge current (A) | 50A |
| Maximum Charge current (A) | 100A |
| Continuous discharge current (A) | 100A |
| Maximum discharge current (A,60s) | 200A |
| Peak discharge current (A,30s) | 300A |
| Peak discharge current (A,10s) | 330A |
| Cycle life | ＞4000cycles |
| Charging Temperature Range | 32°F ~ 131°F (0°C ~ 55°C) |
| Charging Temperature Range | -4°F to 131°F (-20°C ~55°C) -Heating version |
| Disharging Temperature Range | -4°F ~ 140°F (-20°C ~ 60°C) |
| Recommended Temperature Range | 59°F ~ 95°F (15°C ~ 35°C) |
| Communication | CAN 2.0 |
| Safety | Built-in BMS,Explosion Relief Valve |
| Optional features | Bluetooth APP,Heating Device |
| Certification | UN38.3 |

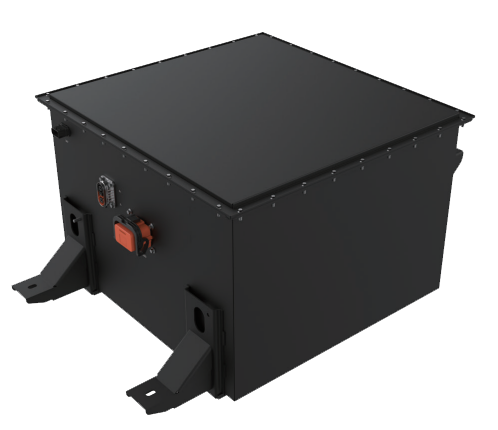

| Application | Light Electric Vehicles |
| Nominal Energy(kWh) @25℃ | 5.1(51.2V)/ 10.2(51.2V)/ 20.4(102.4V)/ 30.72(102.4V) |
| Charge Max current(A) | C/2 Continuously From 0% to 80% of SOC in 2h |
| Discharge Max Continuous Current(A) SOC>15% | 100-300 |
| Discharge Max Peak Current(A) for 30 Seconds | Up to 500 |
| Chemistry | LFP |
| BMS | 12V |
| Operating Temperature (Charge) | -20°C (-4℉) to 50°C (122℉) (Heater if needed to reach the requirements) |
| Operating Temperature (Discharge) | -20°C (-4℉) to 50°C (+122℉) |
| Storage Temperature | Until 1 year: -20°C (-4℉) to +35℃(+95℉) |
| EMC Compliance | R10.06 |
| Electrical Safety Compliance | R136.01/R100.03 |
| Battery Regulation Compliance | Regulation(EU)2023/1542 |
| Compliance | CE |
| Compliance (Transport) | UN 38.3 |
| Ingress Protection | IP65 (minimum) |
